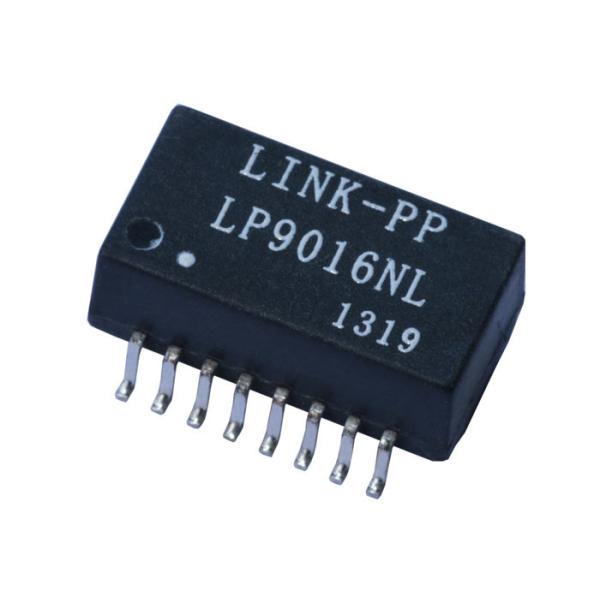

LF-H17S-C / S16-3539 Ethernet LAN Transformer 10/100 BASE - TX With 16 Pins LP9016NL

Name: LFH17SC S163539 Ethernet LAN Transformer 10100 BASE TX With 16 Pins LP9016NL
Brand: LINK-PP
Price: 0.06 USD

Best LF-H17S-C / S16-3539 Ethernet LAN Transformer 10/100 BASE - TX With 16 Pins LP9016NL wholesale

Place of Origin : Guangdong,China

Brand Name : LINK-PP

Certification : UL,RoHS,Reach,ISO

Model Number : LF-H17S-C

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Packaging Details : T&R

Delivery Time : Stock

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

LINK-PP P/N : LP9016NL

Equivalent : S16-3539 / LF-H17S-C

Magnetic : 10/100 BASE-TX

PIN : 16 PIN

CORES : 4

PACKING : SMT

Contact Now

Specifications of LF-H17S-C / S16-3539 10/100 BASE-TX Ethernet Transformer

The LINK-PP LP9016NL (CROSS LF-H17S-C / S16-3539) is a high-performance 10/100BASE-T Single Port LAN Transformer designed with a Toroidal coil structure and compact SMD 16-pin package. It ensures excellent signal integrity, low insertion loss, and high reliability for Ethernet applications.

Parameter	Details
Part Number (LINK-PP)	LP9016NL
Cross Reference	LANkom S16-3539 / LF-H17S-C
Type	Single Port LAN Transformer
Speed	10/100 BASE-T
Coil Structure	Toroidal
Package Type	SMD
Pin Count	16 Pins
Application	LAN Ethernet (Non-PoE)
Operating Temperature	0°C to +70°C
Package Length (mm)	11.45
Package Width (mm)	9.30
Package Height (mm)	6.20

Single Port LAN Transformer Electrical Specifications @25℃

LF-H17S-C / S16-3539 Ethernet LAN Transformer 10/100 BASE - TX With 16 Pins LP9016NL

Applications

The LP9016NL LAN transformer is widely used in networking and communication equipment, including:

HUBs
PC Cards
Ethernet Switches
Routers
PC Mainboards
SDH / PDH systems
IP Phones
xDSL Modems

LINK-PP Competitive Advantages

Over 16 years of production experience in LAN magnetics
Large-scale manufacturing with 2600 staff
100% tested to guarantee performance and reliability
Flexible delivery time to meet customer demands
